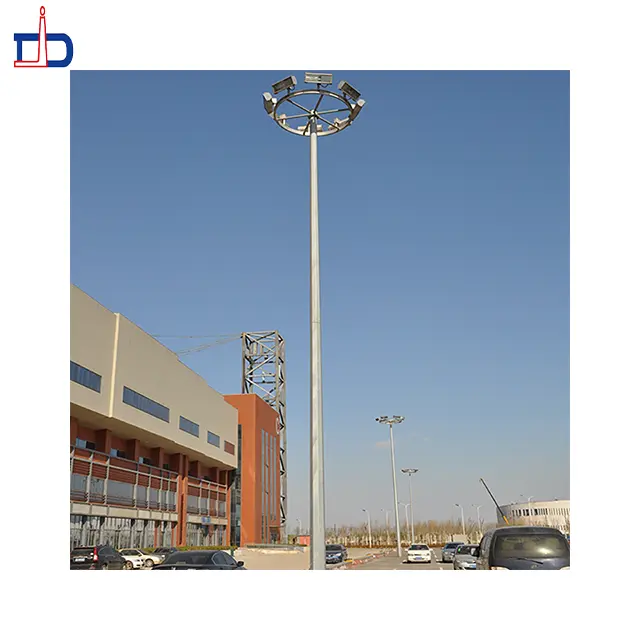

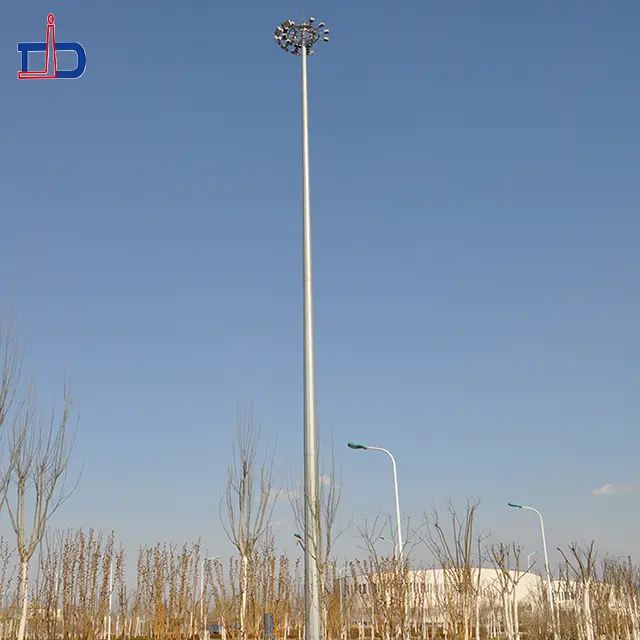

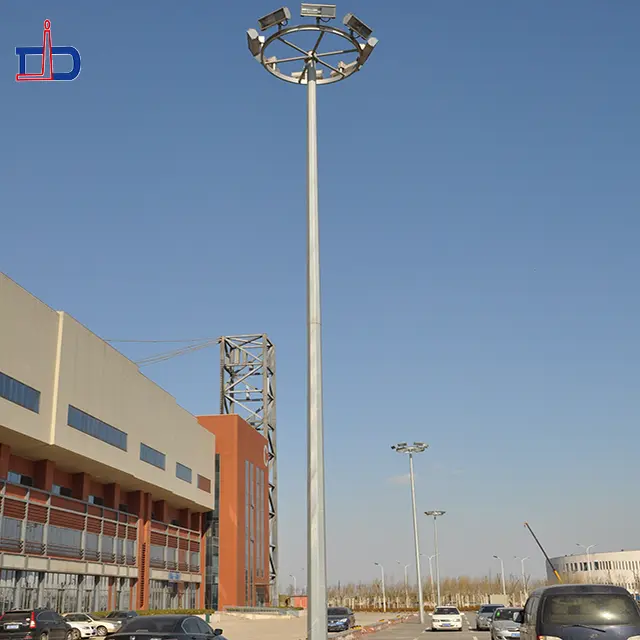

High pole light generally refers to more than 15 meters of steel conical light pole and high-power combined light framecomposed of new lighting devices. Mainly used in city squares, stations, highways, stadiums, yards head , freight yard, overpass.
The high pole lamp is composed of the lamp head, the pole body, the internal lamp electrical and basic parts. The shape of the lamp head can be selected according to the user's requirements, the surrounding environment, the lighting needs, the internal lamps are mostly composed of floodlights and floodlights, the light source uses high-pressure sodium lamps, the rod body is generally a pyramid shaped single-body structure, the height of 15-40 meters, mostly two to three sections, made of steel plate.
When considering the high mast light pole price, factors such as material quality, height, and additional features like wind resistance and ease of maintenance play a crucial role. By evaluating these aspects, customers can ensure they receive durable and efficient lighting solutions tailored to their needs.
| No | Item | Data |
| 1 | Lugar de origem | China |
| 2 | Garantia(ano) | 10-ano |
| 3 | lighting effect(Im/w) | 150 |
| 4 | Marce | lecuso |
| 5 | Product name | 18m 25m 30m 40m telescopic lifting system highmast light pole |
| 7 | Height | 3m-40m |
| 8 | Certifications | ISO9001 |
| 9 | thickness | 2mm-30mm |
| 10 | Surface treatment | Hot Dip Galvanized+powder Coating |
| 11 | Pole's Shape | Polygonal,round,octagonal,single arm,dual arm |
| 12 | Lifespan | More than 30 years |
| 13 | Pole Materia | Q235,Q345,Aluminum |
| 14 | Resistant to Wind | ≥160KM/H |
Light pole steel for Baosteel, Wisco.SS400 low silicon low carbon high strength steel specially made by two steel and angang steel, the thickness is not less than 6mm, the thickness of the bottom flange > 20mm, it is required to ensure the hardness and adhesion of the hot dip galvanized bottom, and the surface is not black. Comply with national or enterprise standards, and provide steel supply contract and steel quality certificate. The installation bracket of the casting light is a channel steel with the edge removed, the specification of the edge removing slot of the lamp panel is 40mm* 80 mm, and the middle bracket of the lamp panel is 40mm*60 mm. The thickness of the two is 3.5 mm, and the diameter of the lamp panel is 1800 mm.
Jintong's High Mast Light Poles are precision-engineered lighting solutions designed to meet the rigorous demands of industrial-scale illumination projects. Commonly used in ports, airports, highways, freight yards, large logistics hubs, and industrial zones, our high mast poles are fabricated for high wind-load resistance, structural endurance, and minimal maintenance over their extended service life.
Height Range: Available from 18 to 50 meters, customizable to project specifications
Pole Configuration: Polygonal or round-conical shafts made from high-tensile low-alloy steel
Headframe Types: Fixed or raising/lowering system with manual or motorized winch
Luminaires Capacity: Supports 6–24 floodlights per mast depending on configuration
Surface Treatment: Hot-dip galvanized as per ASTM A123 with optional polyester powder coating
Design Life: Engineered for a 25+ year service life under harsh environmental conditions
Each high mast pole is designed using finite element analysis (FEA) and complies with international structural codes such as IEC 60598, AASHTO, and BS EN 40, ensuring superior performance under dynamic and static loads. Wind load calculations are based on project location parameters and conform to EN 1991-1-4 standards for wind actions on structures.
Our polygonal pole shafts are constructed using Q345 or Q460 grade steel, CNC-bent and longitudinally welded in compliance with AWS D1.1/D1.5 welding standards, then 100% non-destructive tested (NDT) for weld integrity. The mast is internally strengthened at the base and joint sections to mitigate buckling and fatigue under cyclic stress.
As one of the popular high mast light pole manufacturers, we offer both fixed-head and motorized raising/lowering systems, designed for fast and safe ground-level maintenance. Each system includes double-drum winches, stainless steel wire ropes, and anti-twist cable guides to prevent entanglement. Electrical systems can be equipped with remote-control modules, photocell switches, and IoT-based smart controls for real-time monitoring of luminaire status and power consumption.
Poles undergo full hot-dip galvanizing with zinc coating thicknesses exceeding 85 microns, ensuring long-term corrosion resistance even in coastal or saline environments. Optional polyester powder coating (RAL color chart) is available for aesthetic or branding requirements.
Our galvanizing process adheres strictly to ISO 1461 and is verified via coating adhesion, thickness, and salt spray tests for marine-grade applications.
We collaborate closely with EPC contractors, civil engineering firms, and municipal authorities to deliver tailored solutions. Customizations include:
Headframe design for specific beam angles and photometric efficiency
Anchor bolt cage assemblies suitable for different soil conditions
Integrated lightning protection and bird spike systems
Foundation engineering support with civil drawings and structural analysis reports
